Hex-nose DeGreasing De-Icing Nozzle

Hex-Nose DeGreasing De-Icing Nozzle

$42.00$54.00

Hex Nose DeGreasing De-Icing Nozzle offers excellent pulling power while 3 forward jets penetrate grease or ice blockages. See below for jet angles.

Available in 4 NPT sizes, available specs are listed for each size:

  • 1/8″ x  50′ hose – 2 gpm @ 1,500 psi only
  • 1/4″ x  150′ hose – 2 gpm @ 1,500 psi  |  4.5 gpm @ 3,000 psi
  • 3/8″ x  200′ hose – 4.5 @ 3,000 psi
    •   x  300′ hose – 8  -or-  14 gpm @ 3,000 psi
    •   x  300′ hose – 9 gpm @ 4,000 psi
  • 1/2″ x  300′ hose – 8 gpm @ 3,000 psi only
Clear

Description

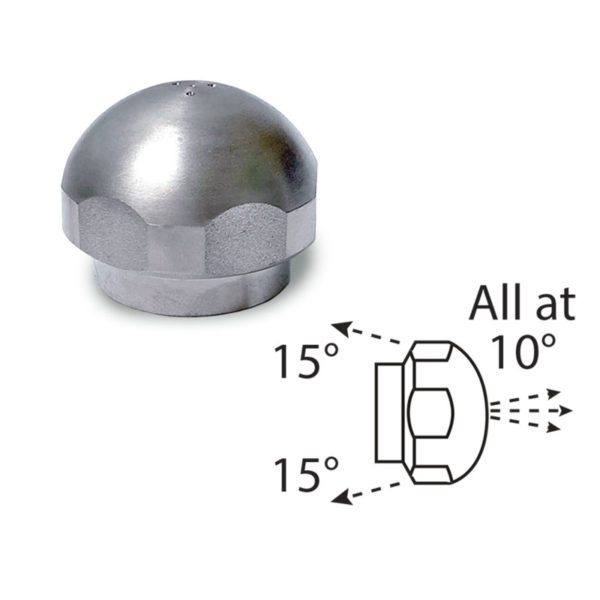

High-pressure Hex-nose DeGreasing De-Icing Nozzle has 3 forward jets at 10° and 6 rear jets at 15°. The mushroom shaped head allows for steeper rear jets and greater pulling power. The forward jets penetrate grease or ice blockages. Precision machined, hardened stainless steel (heat treated), hex-nose nozzles require wrench tightening.

Available in 8 different NPT /GPM/PSI configurations, this DeGreasing de-icing nozzle is tuned to deliver the rated pressure and flow when used with our Jetters. If you need different specs, give us a call!

  • 1/8″ I.D.
    • 2 GPM @ 1500 PSI   (50′ hose)
  • 1/4″ I.D.
    • 2 GPM @ 1500 PSI   (150′ hose)
    • 4.5 GPM @ 3000 PSI   (150′ hose)
  • 3/8″ I.D.
    • 4.5 GPM @ 3000 PSI   (200′ hose)
    • 8 GPM @ 3000 PSI   (300′ hose)
    • 14 GPM @ 3,000 PSI  (300′ hose)
    • 9 GPM @ 4,000 PSI   (300′ hose)
  • 1/2″ I.D.
    • 8 GPM @ 3000 PSI   (300′ hose)

Part No. RHD-  (old part no HX-DG)
