Hex-Nose Super Thruster Nozzle

Hex-Nose Super Thruster Nozzle

$42.00$54.00

Hex shaped nozzle for general cleaning applications with excellent pulling power. See below for jet angles.

Available in 4 NPT sizes, available specs are listed for each size:

  • 1/8″ x  50′ hose – 2 gpm @ 1,500 psi only
  • 1/4″ x  150′ hose – 2 gpm @ 1,500 psi  |  4.5 gpm @ 3,000 psi
  • 3/8″ x  200′ hose – 4.5 @ 3,000 psi
    •   x  300′ hose – 8  @ 3,000 psi
  • 1/2″ x  300′ hose – 8 gpm @ 3,000 psi only
Clear

Description

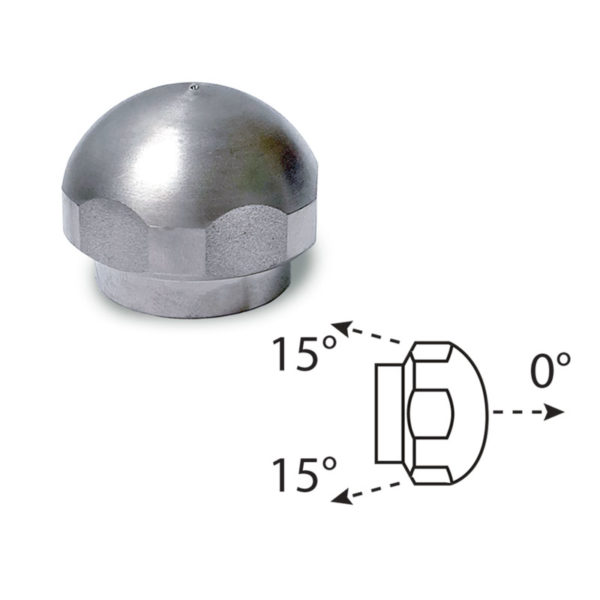

High-pressure hex-nose super thruster nozzle has 1 forward jet and 4 rear jets at 15°. This hex nose nozzle has a mushroom shaped head which allows for steeper rear jets, and greater pulling power. The super thruster nozzle is suitable for general drain cleaning applications, with ability to penetrate some blockages. Precision machined, hardened stainless steel (heat treated), requires wrench tightening.

Available in 6 different NPT size/GPM configurations, the hex-nose super thruster nozzle is tuned to deliver the rated pressure and flow when used with our Jetters. If you need different specs, give us a call!

  • 1/8″ I.D.
    • 2 GPM @ 1500 PSI   (50′ hose)
  • 1/4″ I.D.
    • 2 GPM @ 1500 PSI    (150′ hose)
    • 4.5 GPM @ 3000 PSI   (150′ hose)
  • 3/8″ I.D.
    • 4.5 GPM @ 3000 PSI   (200′ hose)
    • 8 GPM @ 3000 PSI    (300′ hose)
  • 1/2″ I.D.
    • 8 GPM @ 3000 PSI   (300′ hose)

Part No. RHF-  (old part no HX-ST)
